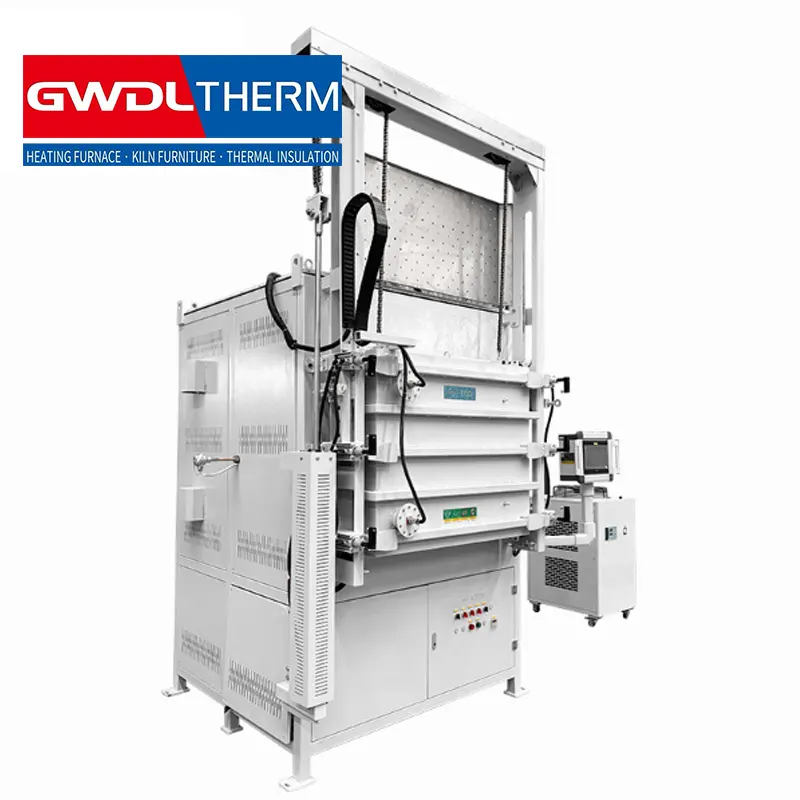

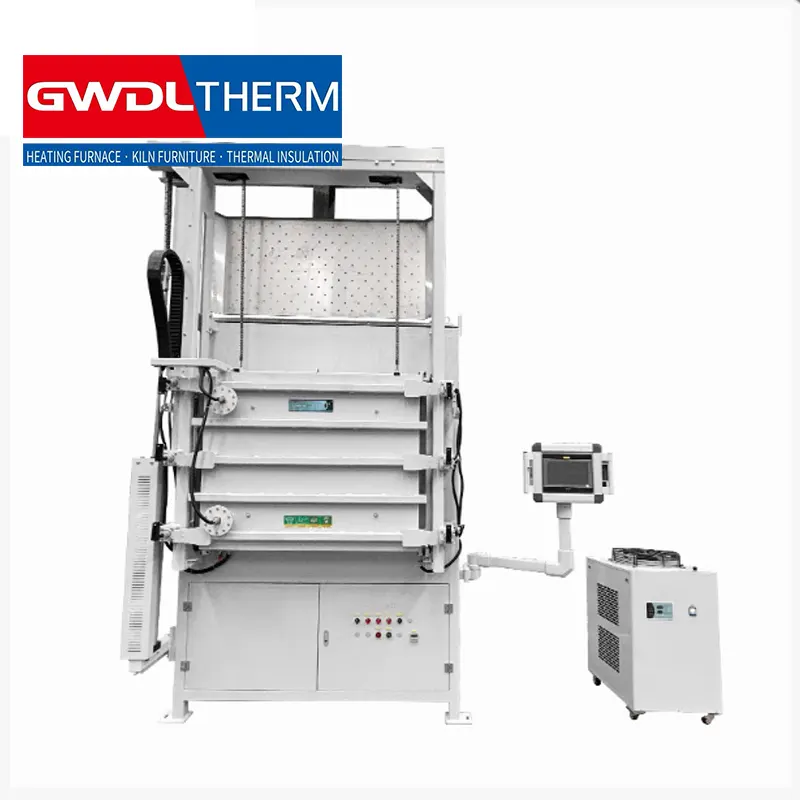

This 1100°C top-opening atmosphere sealed furnace is designed for controlled atmosphere heat treatment. It provides stable temperature uniformity and reliable sealing for laboratory and industrial materials research.
category parameter | 1100 degrees |
model | GWL-1100XLS |
Specifications (furnace dimensions) | Furnace chamber dimensions (depth - width - height) mm : 1000 × 1000 × 800 |
AC power | 380V |
power | 65KW |
The control range is | 80 to 1100 degrees |
Temperature sensing element | Thermocouple type K, temperature range 0-1320 degrees Celsius |
Temperature control point | Three (one on the left and right, one in front and back, and one at the bottom) |
Heating element mounting position | Evenly distributed around the furnace and at the bottom |
Heating element | Uses imported Kanthal resistance wire |
Temperature control accuracy | ± 1 degree (integrated circuit control, no overshoot) |
Furnace temperature uniformity | ± 5 degrees (depending on the size of the furnace) |
Hot air mixing | The function of hot air stirring: The top of the furnace is equipped with air blades. By rotating the air blades, the temperature distribution inside the furnace is stirred evenly, thereby achieving the purpose of uniform temperature inside the furnace. |
stirring blades | 310S stainless steel |
Stirring motor and speed | The mixing motor is water-cooled, and its speed is infinitely variable via a frequency converter (with an additional switch for separate control). |
Refrigeration unit | 2P chiller |
heating rate | The heating rate is freely adjustable, with the following range: fastest heating rate 15 degrees per minute ( 15 degrees /min ), slowest heating rate 1 degree per hour ( 1 degree /h ). |
