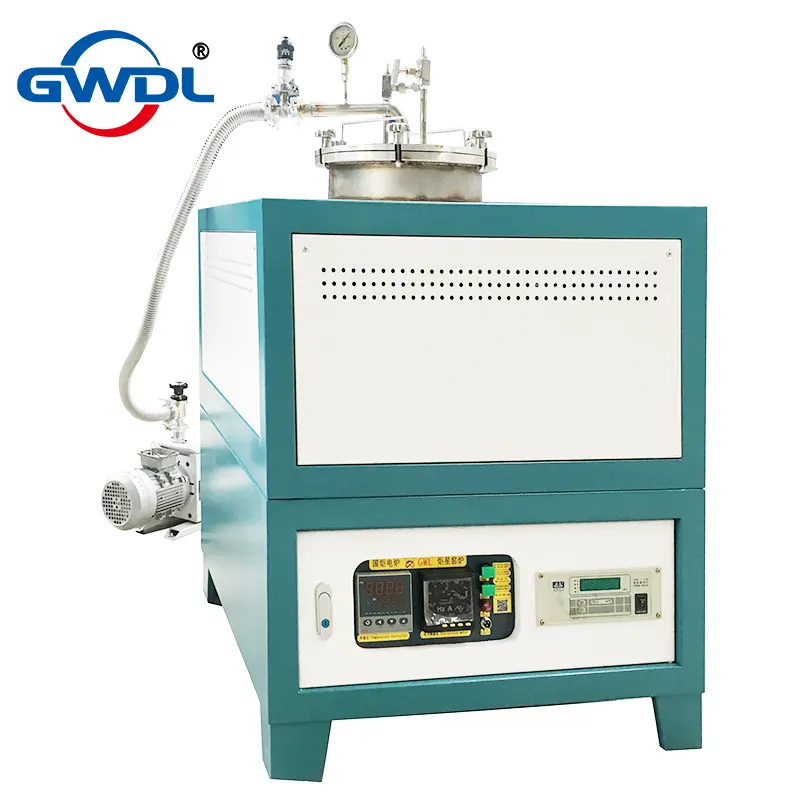

1200℃ vacuum atmosphere well-type electric furnace

Overview

The GWL-1200ZQ series vacuum atmosphere pit furnace is a specialized high-temperature equipment developed for laboratories in universities, research institutes, and industrial enterprises. Designed for sintering, melting, analysis, and production of ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new materials, building materials, metals, and non-metals, it offers precise temperature control of ±1°C, a maximum operating temperature of 1250°C, and flexible atmosphere capabilities for diverse research and production applications.

Product Features

Precision Temperature Control

• Maximum operating temperature 1250°C
• Long-term operating temperature 1200°C
• Temperature control precision ±1°C
• Temperature uniformity ±1°C depending on chamber size
• Multi-point temperature control available for higher uniformity
• Nickel-chromium-nickel-silicon Type K thermocouple measuring 0 to 1350°C
• Programmable heating curve: 1 group with 50 segments, 2 groups with 22 segments, or 3 groups with 8 segments
• Adjustable heating rate from 1°C per hour to 40°C per minute

Robust Construction and Heating System

• Heating elements silicon carbide rods vertically installed on both sides of furnace chamber
• Refractory material high purity alumina fiberboard
• Cooling structure double layer furnace shell with air cooling
• Furnace body temperature less than or equal to 45°C
• Voltage options 220V or 380V AC
• Flexible Control and Connectivity
• Computer interfaces RS485, RS232, USB
• Optional touch screen with Chinese menu and historical curve storage
• IoT interface for remote real-time data reading and writing
• PLC control compatible with upstream and downstream equipment
• Optional computer control software for full automation

Comprehensive Safety and Accessories

• Warranty 1 year free for electric furnace, heating elements 3 months
• Random spare parts include 2 heating elements, 2 sets of rod tools, 1 instruction manual, 1 certificate of conformity, 1 furnace door insulating brick, 1 crucible tong, 1 pair of high temperature gloves
• Various optional functions available for customization

Technical Specifications

Available Chamber Sizes

Applications

• Ceramic sintering and melting analysis
• Metallurgical heat treatment and research
• Electronic material processing and testing
• Glass melting and forming experiments
• Chemical compound synthesis and analysis
• New material development and characterization
• Building material performance testing
• Metal and non-metal heat treatment

Why Choose GWDLTHERM Vacuum Atmosphere Pit Furnace

• Designed specifically for laboratory and research applications
• Precise ±1°C temperature control for reproducible results
• Flexible atmosphere and vacuum capability for diverse processes
• Multiple chamber sizes available from stock
• Rich optional functions for customized requirements
• Comprehensive warranty and spare parts support

FAQ

Q1: What is the maximum operating temperature of this furnace?

A1: The maximum operating temperature is 1250°C, with a long-term operating temperature of 1200°C.

Q2: What type of heating elements does it use?

A2: The furnace uses silicon carbide rods vertically installed on both sides of the furnace chamber for uniform heating.

Q3: Can the furnace be connected to a computer for automated control?

A3: Yes, the furnace supports RS485, RS232, and USB interfaces. Optional computer control software and IoT interface are available for remote monitoring and data logging.

Q4: What is the temperature uniformity inside the furnace?

A4: Temperature uniformity is ±1°C depending on chamber size. For higher requirements, multi-point temperature control can be adopted.

Q5: Are custom chamber sizes available?

A5: Yes, all listed chamber dimensions can be customized according to customer requirements. Please contact us for special customization details.
