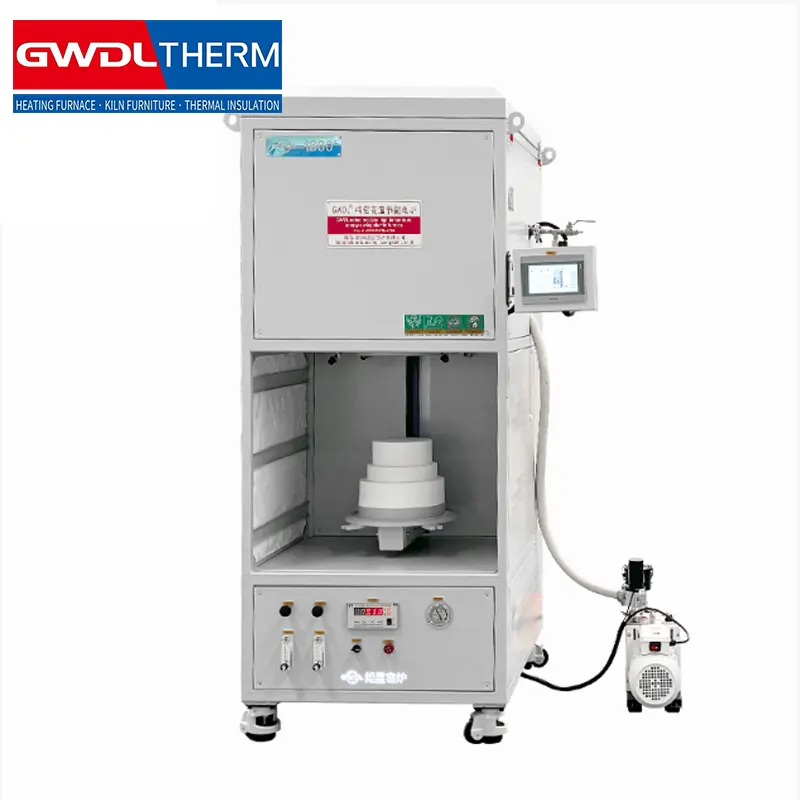

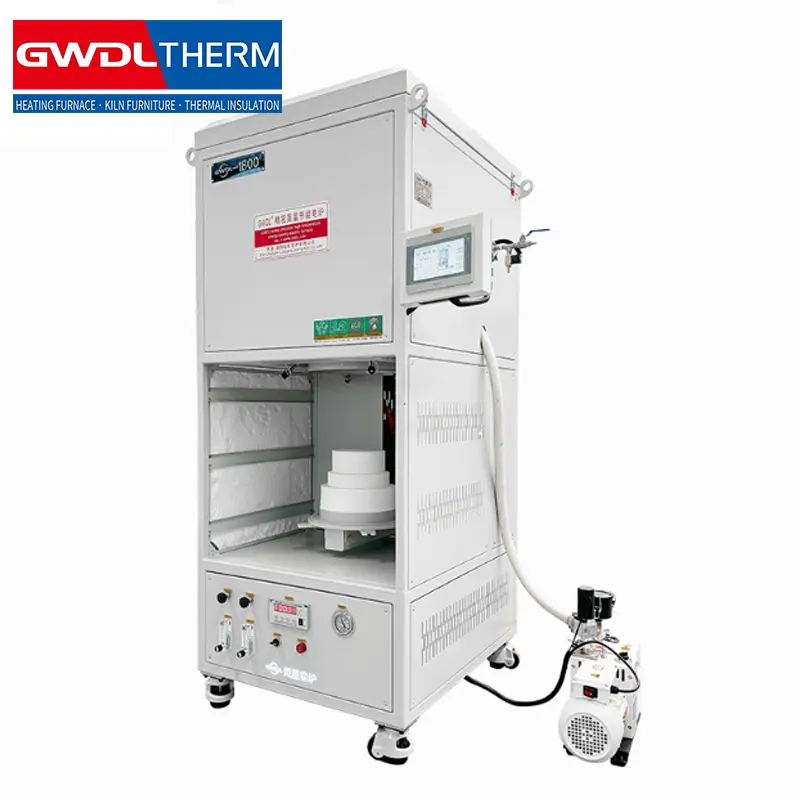

1800°C Atmosphere Lifting Electric Furnace

Furnace size

≥200*200*250mm (Length*Width*Height)

or

≥200*250mm (diameter*height)

Furnace opening method

Lifting

Temperature controller

Equipped with a standard digital controller, the system allows for program setting based on heating/cooling rates or time, and features automatic temperature control and time management. The digital control system can accurately set and display the temperature.

Flow meter

Equipped with a gas flow meter

Sealing method

Soft material sealing (equipped with water cooling)

Operating temperature

Long-term operating temperature ≥1700℃ (no abnormalities observed after 2 hours of operation at 1700℃)

Temperature control accuracy

≤±1℃

heating rate

Adjustable from 1-10℃/min

Temperature field uniformity

≤±5℃ (1300-1700℃, test report provided)

Special gas types

Support nitrogen

Furnace airtightness

Vacuum degree ≤ -0.1MPa (measured at room temperature)

High temperature protection

The machine's outer surface temperature is <50℃ at the highest operating temperature.

Wire requirements

The power cable is a cable.

Protection function

It features an automatic heating stop function when the door is opened, and also provides protection against over-temperature, over-pressure, short circuit, and leakage.

Process security system

Passwords can be set to protect process parameters.
