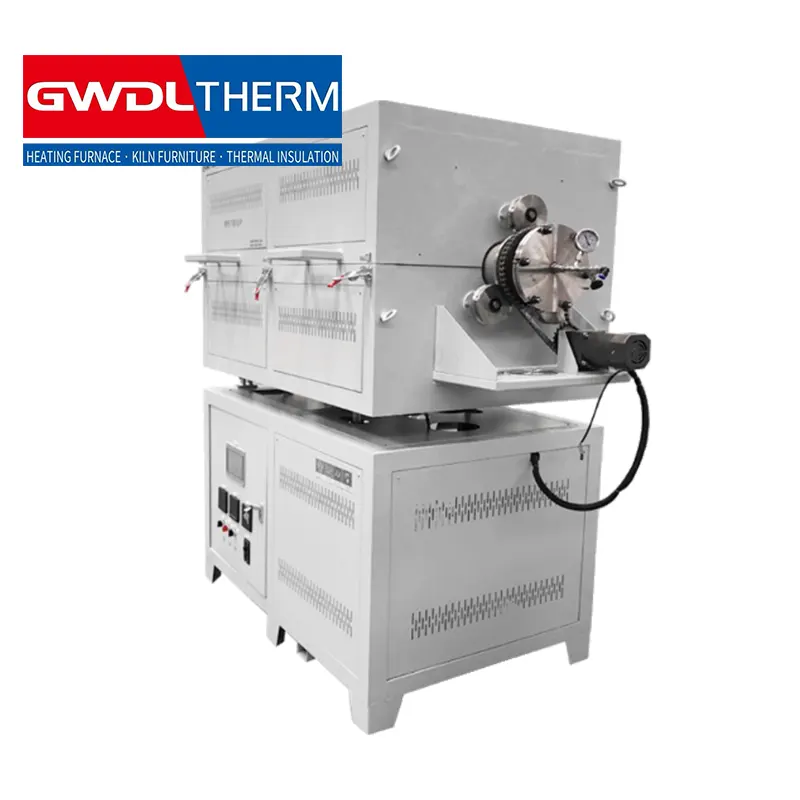

Nitrogen Atmosphere Rotary Furnace for Controlled Heat Treatment

temperature

project

1000℃

model

GWL-KQGA

Voltage AC

Three-phase four-wire. 380V 50HZ

power

20KW

Temperature control accuracy

±1℃

Temperature control area

A temperature zone

heating zone

1000mm

Furnace tube dimensions

Inner diameter: 310mm (outer diameter: 325mm); End diameters: 159mm; Total length: 1600mm

Furnace tube material

310S stainless steel pipe

Furnace tube rotation

Mechanical bearing transmission, capable of automatic rotation

Drum rotation speed

0-5 RPM Adjustable

Furnace body tilt angle

0-30° adjustable

tilting furnace method

electric drive

Feeding and discharging

The furnace body is tilted to discharge material at the same end.

Gas can pass through

Nitrogen
