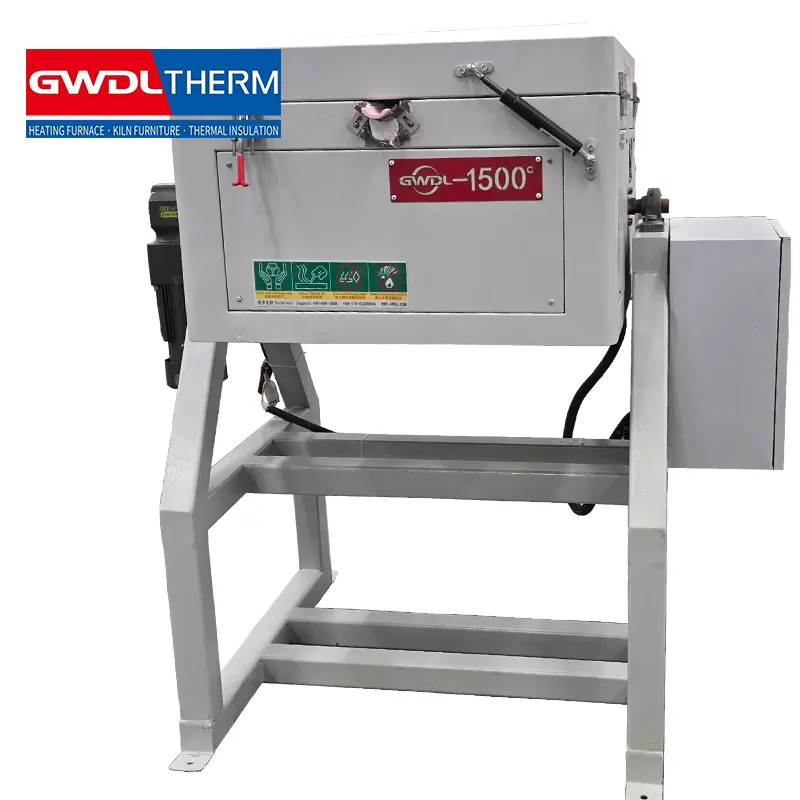

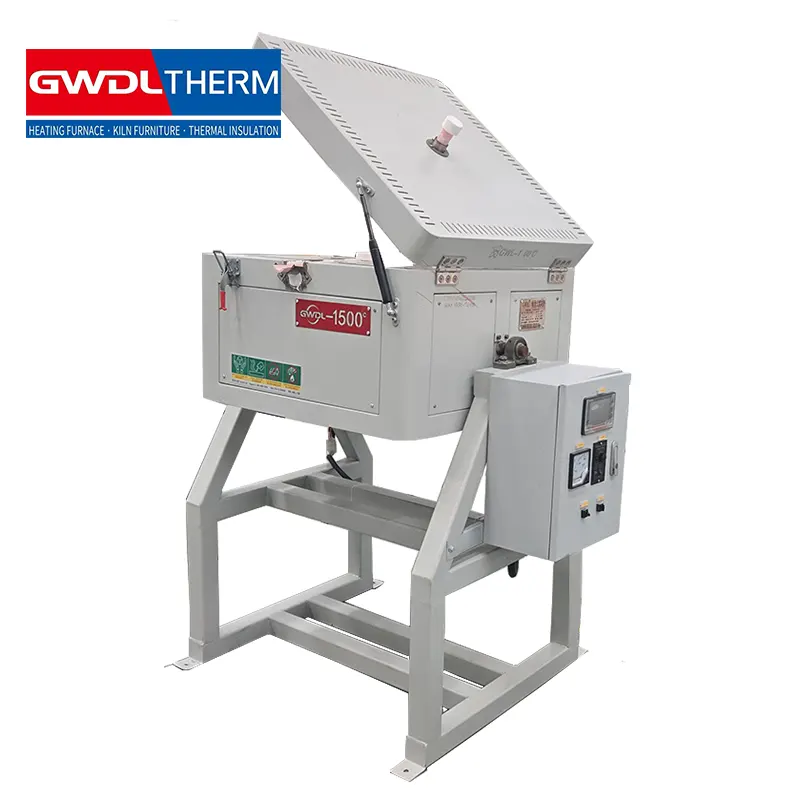

The tilting furnace is designed for safe and efficient metal melting, allowing easy pouring and precise control for foundry, laboratory, and small-scale production use
| Melting furnace model and specifications | ||||||
| name | Specifications and Models | Crucible material (standard configuration) | External dimensions (mm) | Crucible volume (L) | power kW | weight (kg) |
1200°C box-type electric furnace | GWDL-1200R-A-1.6L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 1.6L | 6 | 180 |
| GWDL-1200R-A-3L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 3L | 10 | 220 | |
| GWDL-1200R-A-5L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 5L | 12 | 240 | |
| GWDL-1200R2-A-10L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 10L | 15 | 300 | |
| GWDL-1200R2-A-17L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 17L | 18 | 450 | |
| GWDL-1200R2-A-50L | High-purity fused silica ceramics | custom made | 50L | 45 | 700 | |
| GWDL-1200R2-A-70L | High-purity fused silica ceramics | custom made | 70L | 60 | 900 | |
1400°C box-type electric furnace | GWDL-1400R-A-1.6L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 1.6L | 8 | 200 |
| GWDL-1400R-A-3L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 3L | 10 | 240 | |
| GWDL-1400R-A-5L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 5L | 12 | 260 | |
| GWDL-1400R2-A-10L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 10L | 18 | 330 | |
| GWDL-1400R2-A-17L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 17L | twenty four | 470 | |
| GWDL-1400R2-A-50L | High-purity fused silica ceramics | custom made | 50L | 55 | 750 | |
| GWDL-1400R2-A-70L | High-purity fused silica ceramics | custom made | 70L | 75 | 950 | |
1600°C box-type electric furnace | GWDL-1600R-A-1.6L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 1.6L | 8 | 200 |
| GWDL-1600R-A-3L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 3L | 10 | 240 | |
| GWDL-1600R-A-5L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 5L | 12 | 260 | |
| GWDL-1600R2-A-10L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 10L | 18 | 330 | |
| GWDL-1600R2-A-17L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 17L | twenty four | 470 | |
| GWDL-1600R2-A-50L | High-purity fused silica ceramics | custom made | 50L | 55 | 750 | |
| GWDL-1600R2-A-70L | High-purity fused silica ceramics | custom made | 70L | 75 | 950 | |
1700°C box-type electric furnace | GWDL-1700R-A-1.6L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 1.6L | 10 | 200 |
| GWDL-1700R-A-3L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 3L | 12 | 240 | |
| GWDL-1700R-A-5L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 5L | 15 | 260 | |
| GWDL-1700R2-A-10L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 10L | 30 | 330 | |
| GWDL-1700R2-A-17L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 17L | 45 | 470 | |
| GWDL-1700R2-A-50L | High-purity fused silica ceramics | custom made | 50L | 55 | 750 | |
| GWDL-1700R2-A-70L | High-purity fused silica ceramics | custom made | 70L | 75 | 950 | |
1800°C box-type electric furnace | GWDL-1800R-A-1.6L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 1.6L | 12 | 300 |
| GWDL-1800R-A-3L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 3L | 15 | 340 | |
| GWDL-1800R-A-5L | High-purity fused silica ceramics | L=1120, W=800, H=1370 | 5L | 18 | 360 | |
| GWDL-1800R2-A-10L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 10L | 36 | 430 | |
| GWDL-1800R2-A-17L | High-purity fused silica ceramics | L=1825, W=1825, H=2100 | 17L | 50 | 570 | |
| GWDL-1800R2-A-50L | High-purity fused silica ceramics | custom made | 50L | 65 | 850 | |
| GWDL-1800R2-A-70L | High-purity fused silica ceramics | custom made | 70L | 85 | 1150 | |
| Note: | 1. All models listed above are in stock. Custom furnace dimensions for special models can be made to order (delivery time 7-10 days)! Custom sizes will incur a 20% surcharge for a single unit, a 10% surcharge for 3-5 units, and no surcharge for 6 units or more. | |||||
| 2. Dimensions are in millimeters (mm). The dimensions shown are for reference only; the actual dimensions shall prevail. | ||||||
