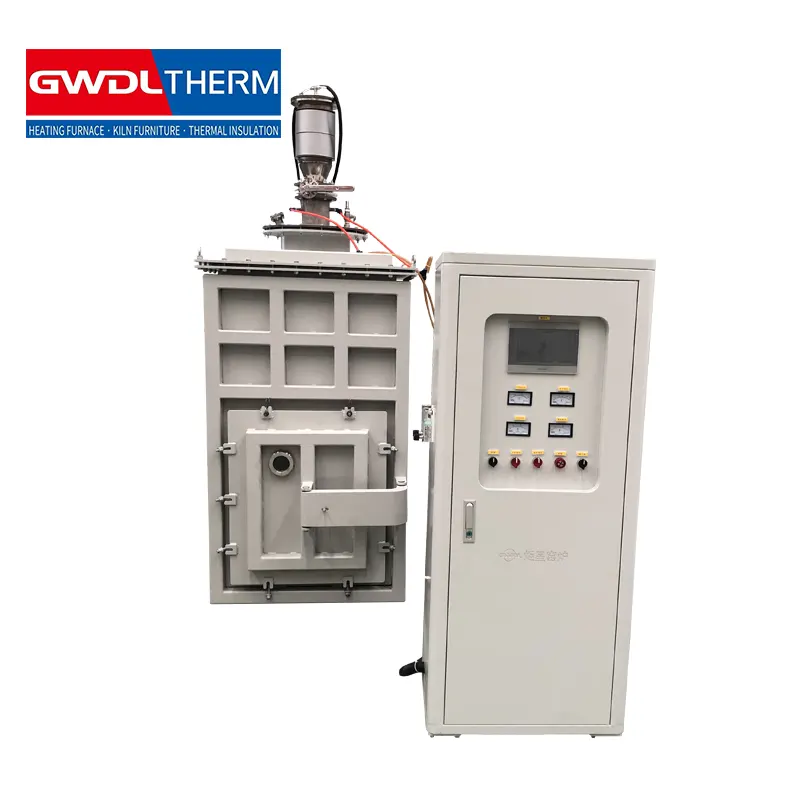

5L Vacuum Atmosphere Melting Furnace

crucible volume：5L

crucible material：High-purity alumina ( 99.9%)

Method of placing and removing the crucible：Upper placement and lower removal

AC power：380V

Maximum operating temperature：1200 degrees

The control range is：100 to 1600 degrees

Download PDF

category parameter	12 00 degrees
model	GWL-1200R5
crucible volume	5L
crucible material	High-purity alumina (99.5%)
Method of placing and removing the crucible	Upper placement and lower removal
discharge port	6mm discharge port diameter, equipped with air cooling
Discharge and loading	Top and bottom
Feeding bin	The feeding hopper is designed to be 5L with heating up to 400 degrees Celsius. The lower part of the hopper is designed with DN80 valves and water-cooled pipes.
AC power	380V
Maximum operating temperature	1250 degrees
Long-term operating temperature	1200 degrees
